Navistar Engine Diagnostics | NED

International Navistar Engine Diagnostics - NED

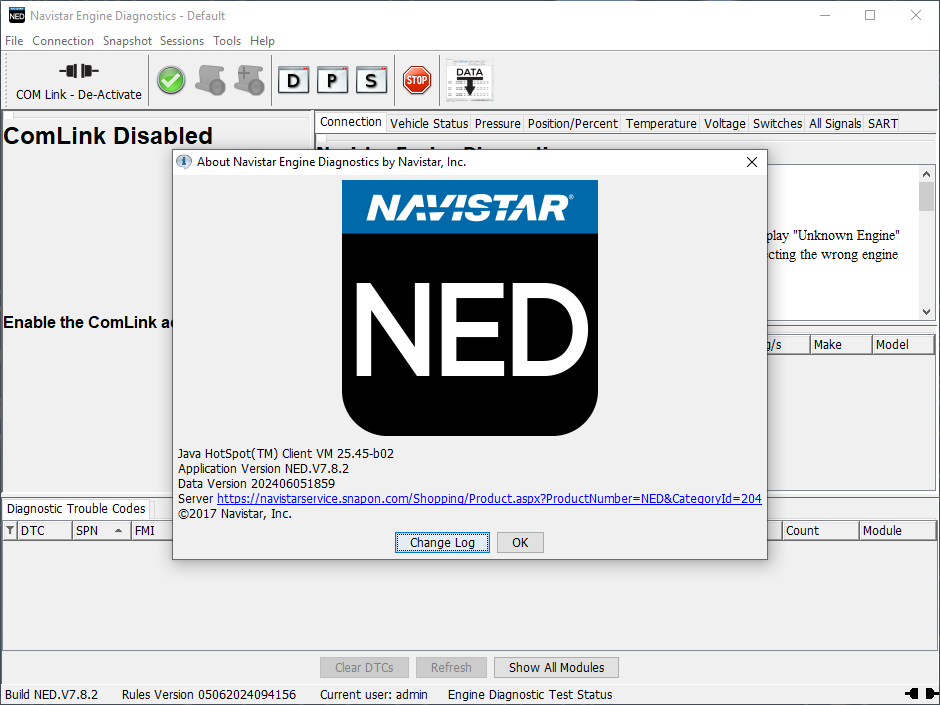

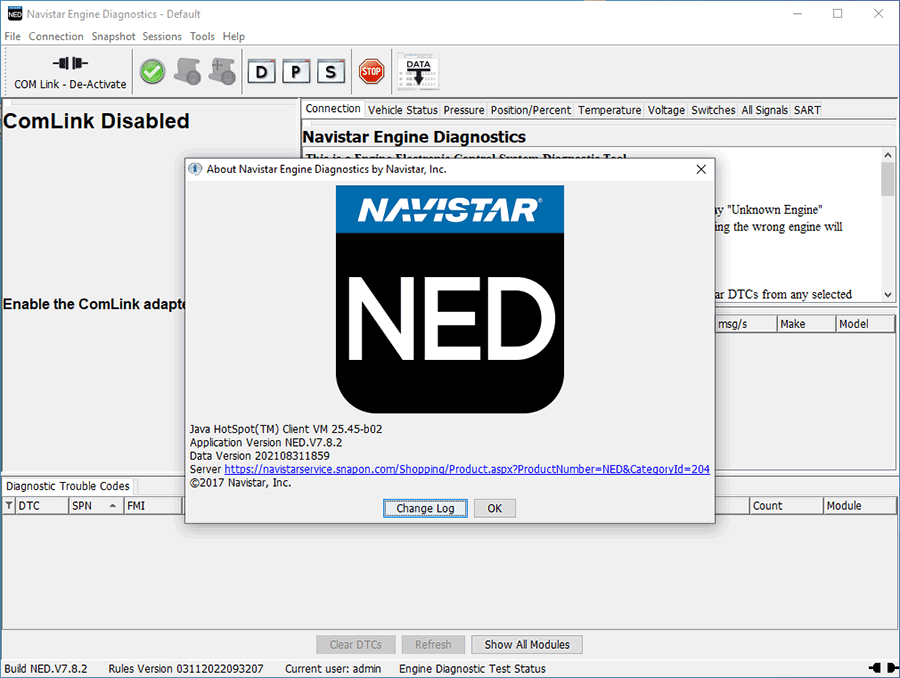

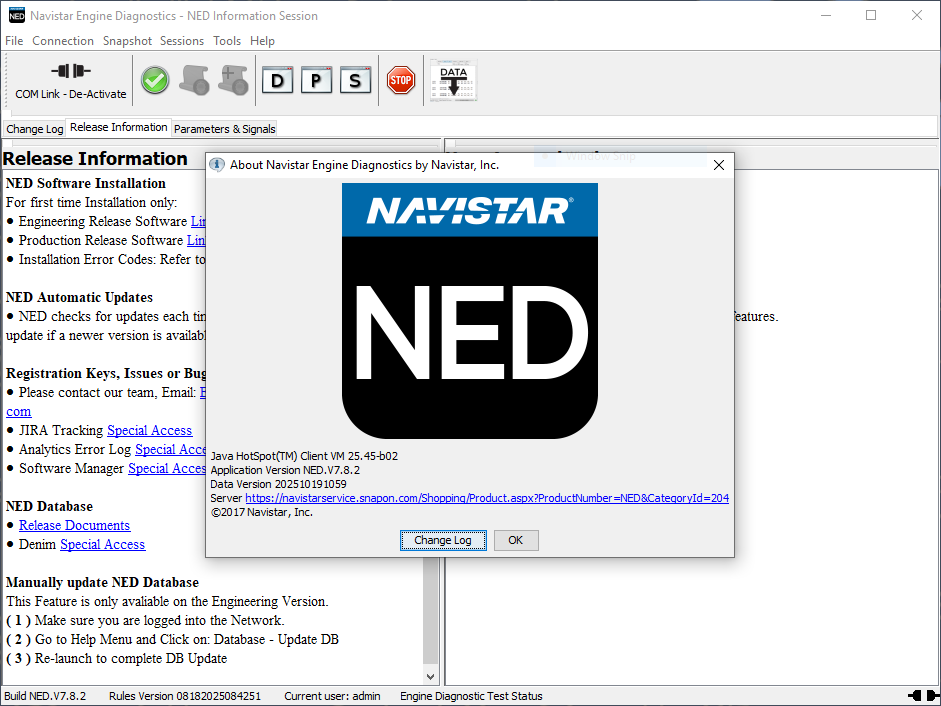

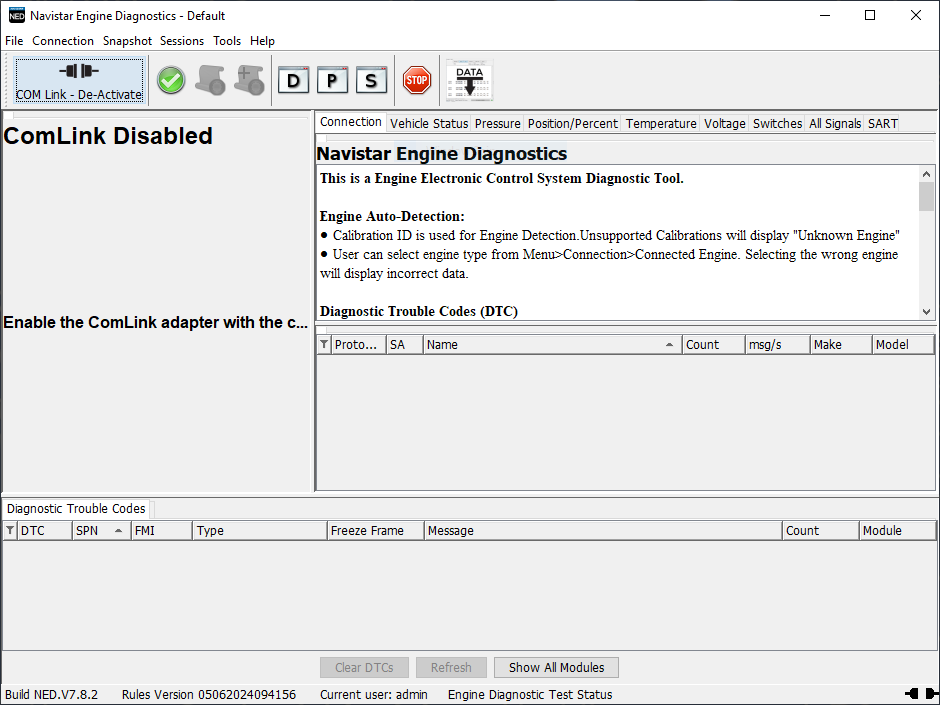

Navistar® Engine Diagnostics is a diagnostic and programming service tool for Navistar® Engines. A fully-featured PC application, Navistar Engine Diagnostics is designed to meet the wide range of diagnostic challenges when servicing your fleet. Coverage includes J-1939 International electronic engine systems, allowing you to run special tests, change parameters and view and graph engine data. This is the top-of-the-line tool for dealers and fleets. The application updates periodically, enabling you to have the most up-to-date coverage.

Basic Features
  • Read and clear diagnostic fault codes
  • View signals and parameters
  • Print trip and vehicle reports

Advanced Features ◾Diagnostic Tests ◾KOEO – Key On Engine Off ◾KOER – Key On Engine Running ◾KOEO – Injector Buzz Test ◾KOER – Injector Contribution Test ◾Cylinder Cutout Test (EPA 04′ and newer) ◾Injector Disable Tests (EPA 04′ and newer) ◾Display and change configurable Parameters ◾Crank Inhibit ◾Fan Control ◾Idle Shutdown Timer ◾Warm-up Device ◾Warning and Protection System ◾Hydraulic Pressure Governor ◾PTO Control ◾Radiator Shutter ◾Vehicle Speed Limit ◾Vehicle Retarder ◾Two Speed Axle ◾Traction Control

Minimum System Requirements:
  • Windows Vista, or Windows 7
  • 1GHz Intel Core 2 Duo, AMD Athlon X2 or better
  • 2GB (32-bit) or 4GB (64-bit) of RAM
  • 300MB of available hard disk space
  • 1024 x 768 pixel monitor
  • One or more RP1210A compatible communication devices with SAE J1708 and/or SAE J1939 support
  • NOTE: Make sure to close Navistar Engine Diagnostics before installing a new version
Engine Support
  • MaxxForce 5 (2007-2009)
  • MaxxForce 7 (2007-2009)
  • MaxxForce 7 (2010-2012)
  • MaxxForce 7 (2013-)
  • MaxxForce DT, 9, 10 (2007-2009)
  • MaxxForce DT, 9, 10 (2010-2012)
  • MaxxForce DT, 9, 10 (2013)
  • MaxxForce 11, 13 (2008-2009)
  • MaxxForce 11, 13 (2010-2013)
  • MaxxForce 15 (2010-2013)
  • N9, N10 SCR (2014-)
  • N13 SCR (2013-2014)
  • N13 SCR (2015-)
  • International A26 SCR (2017-)

The Navistar Service Maxx Diagnostic Software application provides diagnostic capability for international electronic systems. Basic Functions include - Read fault codes, Clear fault codes, View engine data.



International Navistar NED User Guide (PDF)

We will download and install this sofware remotelly on your PC.
Product Name International Navistar Engine Diagnostics - NED
Date of update 08/2021 database with 03/2022 updates
Price 150 USD
Expiration 1 year
Download file size 263 MB
Languages English
Operating system (OS)
compatibility
Windows 7 32bit (x86), Windows 7 64bit (x64)
Windows 8 32bit (x86), Windows 8 64bit (x64)
Windows 10 32bit (x86), Windows 10 64bit (x64)
